Branson 2000X Series Repair & Sales
Rochester Industrial Services has been repairing Branson 2000X Series ultrasonic welders for more than 46 years. We service every variant of the 2000X family — 2000XDT distance-control power supplies, 2000XEAT energy-mode systems, the full 2000XAE/AO/AED/AEF actuator lineup, and the 2000XC pneumatic press generation — across 15 kHz, 20 kHz, 30 kHz, and 40 kHz frequencies. Branson Ultrasonics is now a business of Emerson Electric; we service all 2000X equipment under both branding generations.
Every repair includes a free same-day evaluation, free telephone tech support, full system load testing under production-equivalent conditions, and our 1-year cover to cover warranty. ISO 9001:2015 certified. Most 2000X units ship back within 2 weeks; expedited service is 1–3 days; line-down emergencies can ship same-day.
We also sell certified refurbished 2000X welders, power supplies, actuators, and converters — remanufactured to as-new condition and backed by the same 1-year warranty as a customer repair. Call 888.349.4638 or use the Ship It Now form to get started.

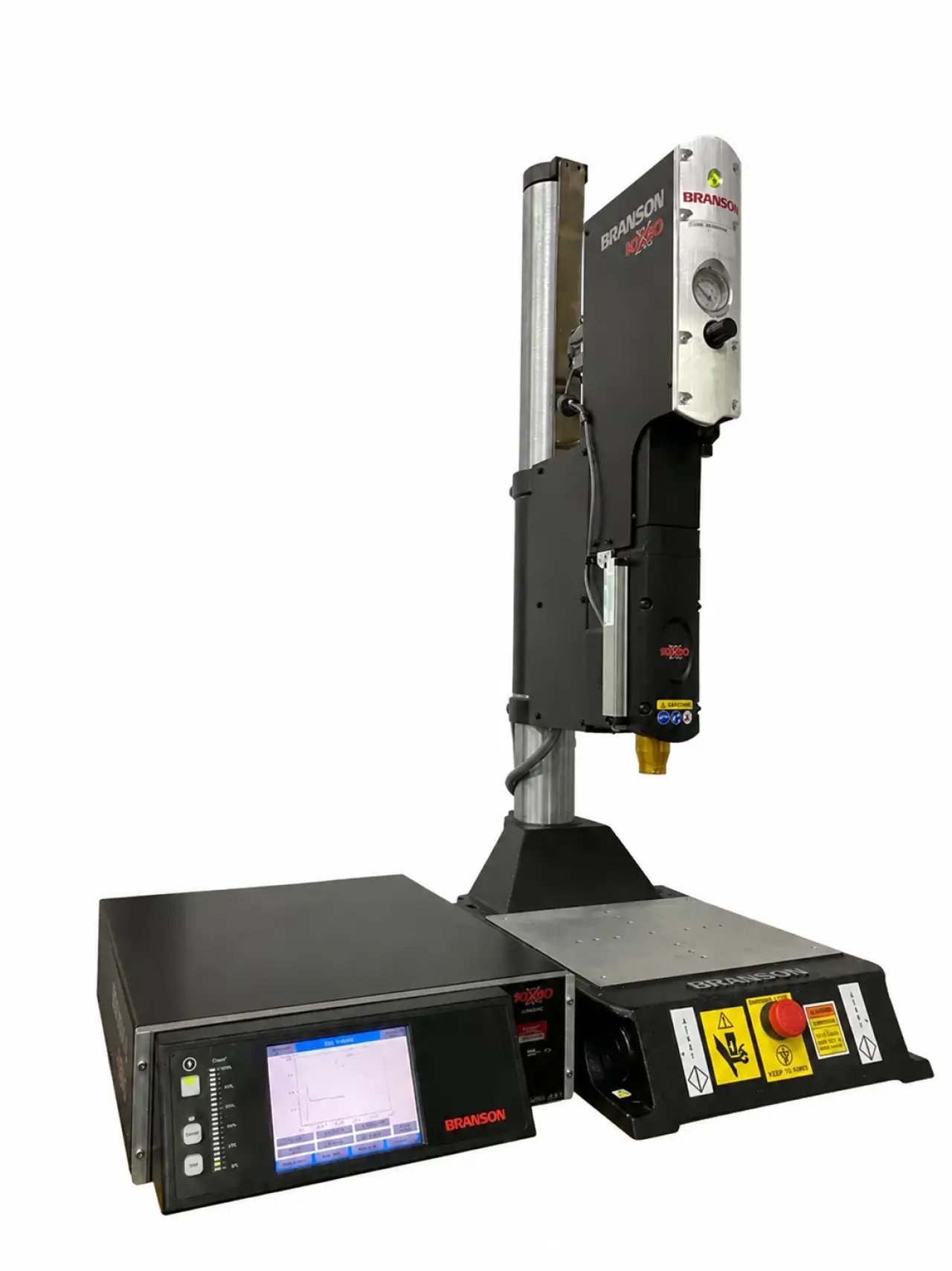

About the Branson 2000X Series
The Branson 2000X Series replaced the legacy 2000 Series and added several key technical capabilities: digital signal processing for tighter weld control, expanded weld modes including Distance (DT), Energy (EA), and Time (T), upgraded interface software for better diagnostics, and broader frequency coverage from 15 kHz up to 40 kHz. The 2000X family is the workhorse of modern ultrasonic plastic assembly — used in medical device manufacturing, automotive interiors, food packaging, consumer electronics, and high-volume plastics production around the world.
Within the 2000X family there are three control modes (T for Time, EA for Energy, D / DT for Distance) and four actuator configurations (AE for standard, AO for output-only, AED for distance-equipped, AEF for force). Each can be matched with the appropriate power supply to create the system best suited for your application. The 2000XC pneumatic press generation builds on the 2000X architecture with a touchscreen LCD interface, AEC control, and integrated weld-mode programming including Time, Energy, Distance, Peak Power, and Ground Detect.
2000X Series Power Supplies We Repair & Sell
We service the complete 2000X power supply lineup — all control modes, all frequencies, all power levels. Below is a quick reference of the standard configurations; if your unit isn't listed, call us and we'll confirm whether we have the test fixtures and replacement parts in stock.
| Power Supply Model | Control Mode | Frequency | Power Level | Typical Voltage |
|---|---|---|---|---|
| 2000X-T | Time | 20/30/40 kHz | 400W – 4000W | 117V or 200-245V |
| 2000X-EA | Energy | 20/30/40 kHz | 400W – 4000W | 117V or 200-245V |
| 2000X-D / 2000XDT | Distance | 20/30/40 kHz | 400W – 4000W | 117V or 200-245V |
| 2000X-F | Force / Custom | 20/30/40 kHz | 400W – 4000W | 117V or 200-245V |
| 2000XEAT | Energy / Advanced Time | 20 kHz | 1250W, 2500W, 4000W | 117V or 200-245V |
| 2000XEA 15 kHz | Energy | 15 kHz | 3300W | 200-245V 1Ph |
2000X Series Actuators We Repair & Sell
| Actuator Model | Configuration | Typical Pairing |
|---|---|---|
| 2000XAE | Advanced Energy | Pair with 2000X-EA or 2000XEAT |
| 2000XAO | Advanced Output | Pair with any 2000X power supply for output-only operation |
| 2000XAED | Advanced Energy + Distance | Pair with 2000X-D / 2000XDT for closed-loop distance welding |
| 2000XAEF | Advanced Energy + Force | Pair with 2000X-F or any compatible PS for force-controlled welding |
| AED 2000X | Distance-equipped (legacy variant) | Most common production replacement; we stock refurbs |
2000XC Pneumatic Press Systems
The 2000XC is the pneumatic press generation built on the 2000X architecture. It uses a touchscreen LCD interface, AEC control level, and supports five weld modes: Time, Energy, Distance, Peak Power, and Ground Detect. Cylinder options run 1.5", 2.0", 2.5", 3.0", and 3.25". We service the complete 2000XC lineup across the configurations below:
| Frequency | Output Power | Actuation |
|---|---|---|
| 20 kHz | 1250 W | Pneumatic |
| 20 kHz | 2500 W | Pneumatic |
| 20 kHz | 4000 W | Pneumatic |
| 30 kHz | 750 W | Pneumatic |
| 40 kHz | 750 W | Pneumatic |
| 40 kHz | 800 W | Pneumatic |
EDP Part Number Reference
The Branson 2000X family uses EDP numbers to identify specific power supply configurations by control mode, frequency, power level, and orientation (horizontal vs vertical). Below are the standard EDP numbers across the most common 2000X / DCX-compatible configurations. If your unit's part number is listed — we service it. If it isn't, call us; we likely service it anyway.
These EDP numbers are based on the modern 2000X / DCX-compatible nomenclature. Older 2000X units use different EDP numbering — verify against your label and call us if you're unsure.
| Frequency | Power | EDP # (Horizontal) | EDP # (Vertical) |
|---|---|---|---|
| 20 kHz | 1250 W | 101-132-1792 / 101-132-1808 | 101-132-1801 / 101-132-1815 |
| 20 kHz | 2500 W | 101-132-1793 / 101-132-1809 | 101-132-1802 / 101-132-1816 |
| 20 kHz | 4000 W | 101-132-1795 / 101-132-1810 | 101-132-1803 / 101-132-1817 |
| 30 kHz | 750 W | 101-132-1796 / 101-132-1811 | 101-132-1804 / 101-132-1818 |
| 30 kHz | 1500 W | 101-132-1797 / 101-132-1812 | 101-132-1805 / 101-132-1819 |
| 40 kHz | 400 W | 101-132-1791 / 101-132-1807 | 101-132-1800 / 101-132-1814 |
| 40 kHz | 800 W | 101-132-1798 / 101-132-1813 | 101-132-1806 / 101-132-1820 |
Our 4-Step Repair Process
Every 2000X unit follows the same component-level process. Production teams know what to expect because the process is the same whether you ship us a single 2000X power supply or a complete 2000X system.
1. Evaluate
Free same-day evaluation and quote.
2. Disassemble
Complete teardown and cleaning. Every board, connector, pneumatic component, encoder, and mechanical assembly is inspected at the component level. Cooling fans and filters are replaced as standard procedure.
3. Repair
Failed components and high-probability-of-failure parts are replaced. Cables, regulators, and gauges are serviced as needed. Front control panels are refurbished including video displays, push buttons, switches, and output controls.
4. Load Test
Rigorous burn-in cycling, full system load testing, and output verification against original manufacturer specifications. Documented and returned to production-ready condition with a 1-year cover to cover warranty.
Common 2000X Failures We Repair
Across thousands of 2000X repairs we see the same failure modes repeatedly. If your unit is showing one of these symptoms, we have replacement components in stock and the test fixtures to verify the fix:
- Power Supply Module Overload (Error 19) — capacitor failure, output stage degradation, or upstream stack faults
- Non-resettable alarms (Error 05, Error 21) — SV drive output failures, often a blown fuse or triac failure
- ULS / TRS timing faults (Error 01, 03, 06, 11, 13) — interface board failures or relay degradation
- Touchscreen LCD failures (2000XC) — display backlight failure, touch controller calibration drift
- Communication and I/O errors — Ethernet, RS-232/485, or user I/O signal degradation
- Frequency drift outside generator lock range — converter or booster stack issues; we diagnose the whole acoustic system
- Front panel switch and encoder failures — push buttons, rotary encoders, output adjust controls
- Cooling fan failures and thermal shutdown faults — replaced as standard procedure on every rebuild
- Pneumatic system leaks and regulator failures (2000XC) — fittings, lines, gauges, regulators serviced or replaced
- Discontinued component sourcing — OEM-discontinued parts identified, cross-referenced, and replaced with verified equivalents
Branson 2000X Welders & Power Supplies — New and Refurbished
Whether you need a brand-new 2000X system or a certified refurbished unit, we can help you find the right fit for your production line and budget. Both options are backed by our 1-year cover to cover warranty and the same component-level expertise that goes into every repair we perform.
New 2000X Equipment
We supply new Branson 2000X equipment across the product family:
- Current-generation 2000X power supplies in T, EA, D, DT, and F control modes
- 2000XAE, 2000XAO, 2000XAED, and 2000XAEF actuators
- 2000XC pneumatic press systems with touchscreen LCD interface
- Compatible CJ-20, CR-20, CR-20S converters and matching boosters
- Complete welding stack configurations matched to your application

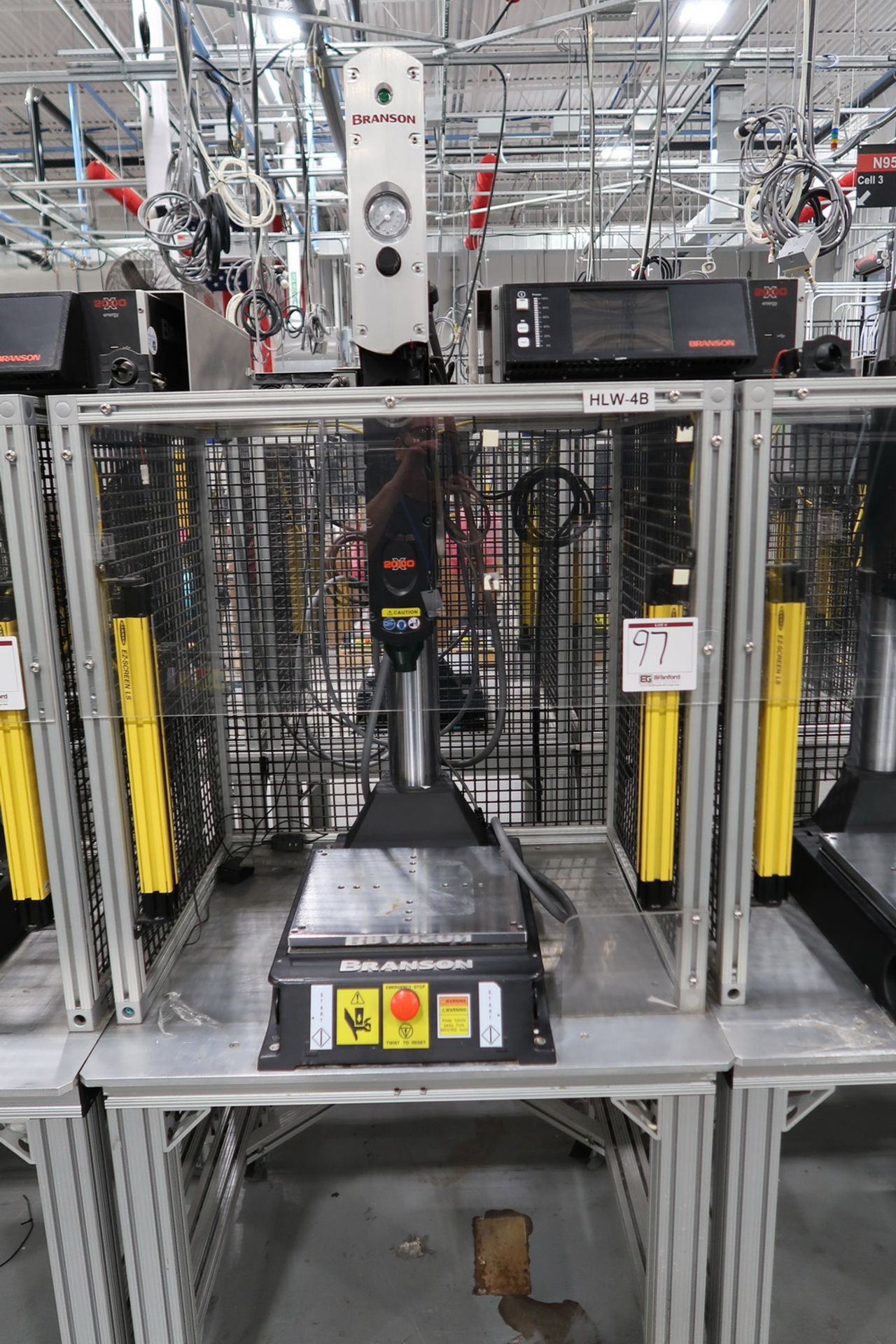

Certified Refurbished 2000X Equipment
Refurbished units go through the same component-level rebuild process as a customer repair, are fully load tested, and carry our 1-year cover to cover warranty — typically at 40–60% of OEM new-unit pricing. Refurbished options include:
- 2000XDT distance-control power supplies across multiple kW and frequency configurations
- 2000XEAT 20:2.5 and 20:4.0 power supplies
- AED 2000X actuators — the most common production replacement
- CJ-20, CR-20 and CR-20S converters
- Complete 2000XC pneumatic systems
Not sure whether new or refurbished is right for your application? Call 888.349.4638 and we'll talk through the trade-offs — application, lifecycle expectations, budget, and lead time — and recommend the best fit. You can also browse the Branson section of our online store for current options.
Frequently Asked Questions
What's the difference between the 2000 Series and the 2000X Series?
The 2000 Series is the legacy generation; the 2000X Series replaced it with digital signal processing, expanded weld modes (Time, Energy, Distance, Force), and broader frequency coverage from 15 kHz up to 40 kHz. The 2000X also introduced upgraded interface software for better diagnostics. We service both generations equivalently — same trust signals, same warranty, same turnaround.
What's the difference between 2000XDT and 2000XEAT?
The 2000XDT uses distance-based weld control — the welder measures actual collapse depth and welds to an absolute distance target. The 2000XEAT uses energy-based control plus advanced time modes — the welder delivers a programmed energy amount or runs a time-based weld cycle. Both are 2000X family members, both available in multiple kW configurations, both fully serviceable by RIS.
Can you repair the 2000XC pneumatic press systems?
Yes. The 2000XC adds a touchscreen LCD interface, AEC control level, and pneumatic actuation to the 2000X architecture. Most 2000XC repairs involve touchscreen calibration, power supply module faults, pneumatic regulator/cylinder issues, or communication errors. We have the test fixtures, replacement components, and pneumatic service capability in-house.
Do I need to ship the entire 2000X system, or can I send just the power supply?
Either works. If you can identify the failure as power supply only, send just that. If you're seeing intermittent issues or unsure where the problem is, send the complete stack (power supply, converter, booster, horn, actuator) so we can verify the whole acoustic system under load. Use the Ship It Now form to streamline receiving and skip paperwork delays.
My EDP number isn't in the table above. Do you still service it?
Almost certainly yes. The EDP tables above cover the most common modern 2000X / DCX-compatible configurations. Older 2000X units use different EDP numbering, and many custom configurations exist for specific OEM applications. Call us with your EDP number or model nameplate and we'll confirm. We service virtually every 2000X variant ever shipped.
Branson is now Emerson — does that change anything for repair?
No. The 2000X Series predates and continues through the Emerson rebrand. We service all 2000X equipment under both branding generations. Replacement components are available for both Branson-era and Emerson-era equipment, including legacy parts the OEM no longer stocks.
How fast can you get my 2000X back into production?
Standard turnaround is under 2 weeks. Expedited repairs ship in 1–3 days. For line-down emergencies, we offer same-day repair and same-day shipping when possible. Most units are diagnosed within 24 hours of arrival on our bench. If timing is critical, mention that when you call — we hold a queue position for emergencies.
What is your warranty on 2000X Series repairs?
Every 2000X repair, full system rebuild, and refurbished unit is backed by our 1-year cover to cover warranty — equal to or better than the OEM new-product warranty on equivalent equipment. Free telephone tech support is included for the life of the unit.
Why RIS for 2000X Repair?
ISO 9001:2015 Certified
Verifiable certification on file. Every repair follows documented, auditable quality processes.
46+ Years of Experience
More than four decades of ultrasonic welder repair — across every Branson generation from the original 2000 Series through today.
Component-Level Repair
We fix what other shops swap. Deep-level electronic and mechanical restoration saves thousands compared to OEM board replacements.
1-Year Cover to Cover Warranty
Every repair and refurbished unit is backed by a comprehensive warranty equal to or better than OEM new-product coverage.
Free Evaluation & Tech Support
Same-day evaluation on every unit. Free telephone tech support for the life of the equipment — no invoice required.
Independent — No Upsell Pressure
Not affiliated with Branson or Emerson. We stock replacement components for both current and legacy 2000X equipment — and we'll tell you when a repair makes more sense than a replacement.
Ship your 2000X equipment for a free same-day evaluation. Use the Ship It Now form to print shipping paperwork, secure your evaluation queue position, and skip the back-and-forth. Or call 888.349.4638 to speak directly with a 2000X specialist — no receptionist, no sales script.
