UEMSI/HTV Predator Advantage Mainline Camera Systems
The Predator Advantage™ by UEMSI/HTV®, is an extremely user-friendly camera system that will grow with you as your company grows. It is an investment, not only for the present, but also the future.
In its most basic form, the Predator Advantage is a portable mini camera inspection system with tremendous potential. Using a cabled push reel, push skid, and camera head, the Advantage is ready to inspect laterals up to 250' long.

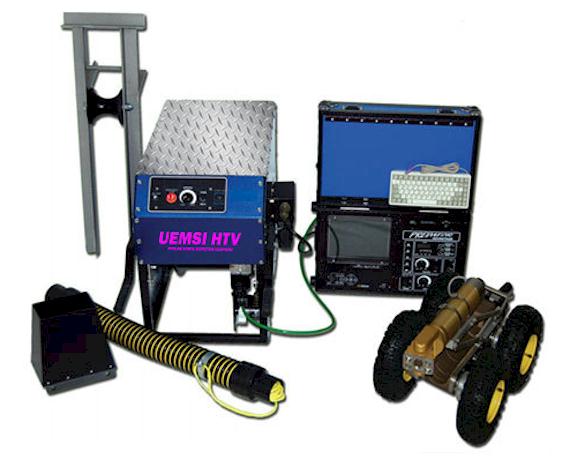

Mainline inspections are easily conducted when the Predator Advantage PCU is paired with a portable mainline reel and a tractor.
The Predator Advantage PCU features the following built-in controls: color LCD monitor, DVR player / recorder, interchangeable lighthead control, tractor control, connection for the Explorer™ Zoom pan & tilt camera remote control, and a microphone jack.
Created to do the work of many different units, the UEMSI/HTV Predator Advantage is the only system you will ever need!
Made in the USA.
Specifications
Push Reel Assembly
- Durable steel construction
- Maintenance-free slip ring
- Rugged wheels for easy mobility
- Fiberglass rod embedded in video cable for rigidity
- 4" flexible spring for easy bend negotiation
- Reel dimensions: 34" H x 14" W x 30" L
- Reel weight w/ 250' of cable: 55 lbs.
- Hand brake prevents cable reel from turning during transport
- EZ Termination for faster field service
- Cable Quick Disconnect for easy cable replacement
CH-3 Color Camera Head
- Video output: 1.0 V p-p NTSC, standard 75 ohm
- Imaging device: 2 lux solid state
- 2:1 interlace scanning
- Scan frequency: 15.734 KHz; 59.9 Hz
- 410,000 pixels
- 460 lines (h) resolution
- 115° lens, 2.8 mm, f 1.4
- Power: 12 VDC
- O-ring sealed aluminum housing
- Equipped with 12 high-output LEDs
- Variable light output
- Lighthead housing: high strength, clear polycarbonate
- Camera dimensions: 2.25" OD x 3.0" L
- Camera weight: 11 1/8 oz.
Power Control Unit
- Rugged case
- Wheels with a retractable pull handle
- Hinged, removable lid with built-in storage compartment
- Complete sunlight readable monitor and camera controls
- 10.4" sunlight readable color LCD monitor
- DVR player/recorder that records directly to an SD card
- Video input/output RCA connectors
- Selectable camera power supply:
- Mainline Mode: 11 - 48 VDC
- Mini Camera Mode: 12 VDC
- Selectable lighthead power supply:
- Low: 0-12 VDC
- Medium: 0-40 VDC
- High: 0-80 VDC
- Case dimensions: 22" L x 14.5" W x 20.5" H
- Weight: 55 lbs.
Data Display Packages
Data Display I Package
- On-Screen Digital Footage
- On-Screen User Defined Text
- Date and Time
- Keyboard
Data Display II Package
- On-Screen Digital Footage
- On-Screen User Defined Text
- 55 Predefined Pipe Comments
- Free Format Page
- Keyboard
Mini Camera System Options
Mini Camera Upgrades
- Mechanical Footage Counter
- Tracker™ Locator System
- 10" & 12" Aluminum Skids
- 8", 10", 12" & 15" Roller Skids
- 300', 400' and 500' Cable Lengths Available
Mainline Tractor System Packages and Options
Trax Jr.™ Tractor Package: Forward - Neutral - Reverse
- Trax Jr.™ Tractor for 6" - 15" Pipe
- Tyger Tail® Cable Guide Hose
- Heavy-Duty Retrieval Pole
- Top Manhole Roller
Additional Trax Options:
- 18"- 24" Expansion Kit - 18"- 30" Expansion Kit
Prowler™ Package
- Prowler™ Transporter for 8" - 48" Pipe
- Tyger Tail® Cable Guide Hose
- Heavy-Duty Retrieval Pole
- Top Manhole Roller
Explorer™ Zoom Pan & Tilt Packages
- Explorer™ Zoom Pan & Tilt Camera
- Wired Hand-held Remote Control
- 5-Pin Extension Cable
Portable Mainline Reels
Standard Features
- Video Cable 500', 600', 900' or 1000'
- Power Rewind
- Automatic Levelwind
Optional Accessories:
- On-Screen Digital FootageAvailable with Both Data Display Packages
Lightheads
- Low Profile Lighthead, for 6"- 24" Pipe
- High Performance Lighthead, for 8"- 48" Pipe
